123.5 AEC2.0L Piston Engine Replace E4-C Series Continental Aircraft Engines

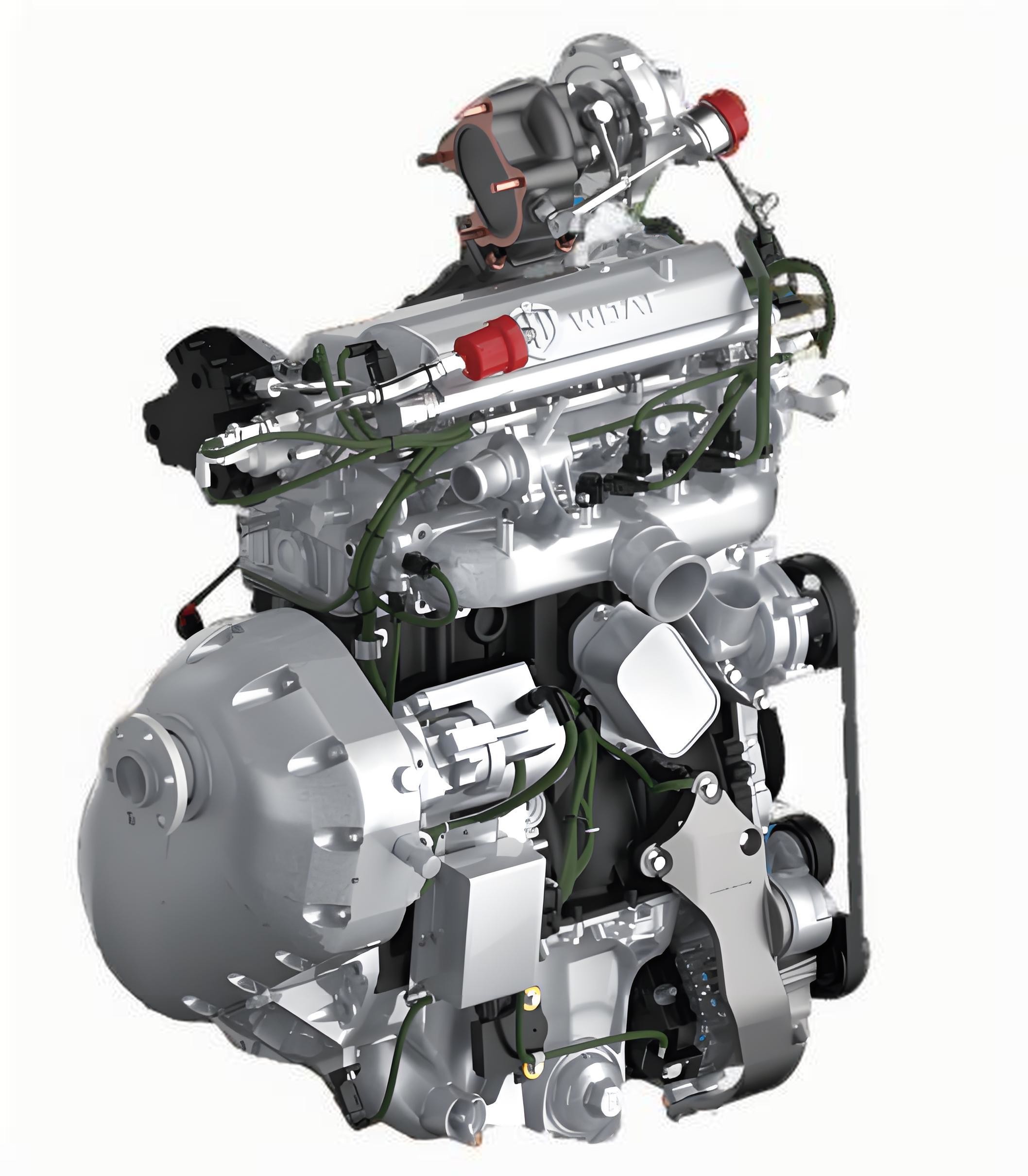

AEC2.0L Aircraft Engine (Replace E4-C Series Engine)

The AEC2.0L aircraft engine is a piston engine independently developed and produced by Wuhu Diamond Aviation Engine Co., Ltd. It has the advantages of high reliability, good economy and strong power.

AEC2.0L can replace E4-C (Austria Engine), which is made in China.

The maximum take-off power of the AEC2.0L aircraft engine is 123.5 kilowatts and the maximum approved flight altitude is 18,000 feet.

Contact us for prices & lead time.

WEIGHT kg lb Engine with propeller speed reduction gearbox i = 2.43 64.0 140.8 Exhaust system 4.0 8.8 Engine suspension frame 2.0 3.7 Overload clutch 1.7 3.7 External alternator 3.0 6.6 PERFORMANCE 84.8 kW 115 hp 5800 1/min TORQUE 144 Nm 106 ft. lb. 4900 1/min Max RPM 5800 1/min BORE 79.5 mm 3.13 in STROKE 61.0 mm 2.4 in DISPLACEMENT 1211.2 cm³ 73.91 cu inWEIGHT kg lb Engine with propeller speed reduction gearbox i = 2.43 64.0 140.8 Exhaust system 4.0 8.8 Engine suspension frame 2.0 3.7 Overload clutch 1.7 3.7 External alternator 3.0 6.6 PERFORMANCE 84.8 kW 115 hp 5800 1/min TORQUE 144 Nm 106 ft. lb. 4900 1/min Max RPM 5800 1/min BORE 79.5 mm 3.13 in STROKE 61.0 mm 2.4 in DISPLACEMENT 1211.2 cm³ 73.91 cu in
